广告请求和返回json示例¶
Note
示例中可以使用 ssp_token(32D4FAE475B19434FFC67983F6628A28) 作为测试token获取测试数据，供测试查看效果使用，请正视上线后切换为正式配置，否则将不会产生任何请求，展示，点击收益等数据。
Note
如果正式 ssp_token , app_id , app_name 需要测试广告，请联系玉米广告人员添加测试广告，该测试数据不在结算范畴内.
banner请求示例¶
{
"ver": "1.1",
"ssp_token": "zplay提供的ssp_token",
"need_https": 0,
"app": {
"id": "zplay提供的app_id",
"name": "DrivingTest",
"app_key": "zplay提供的app_key",
"bundle": "cn.eclicks.drivingtest",
"ver": "",
"cat": []
},
"device": {
"model": "MHA-AL00",
"brand": "HUAWEI",
"adt": 1,
"connection_type": "wifi",
"carrier": 0,
"orientation": 1,
"mac": "84:be:52:7a:24:67",
"imei": "862552036260906",
"android_id": "5588e0a238461ee8",
"openudid": "5e8061c7-1079-35d2-a218-c4aa739f7870",
"os_type": "android",
"os_version": "7.0",
"screen": {
"w": 1080,
"h": 1812,
"dpi": 480
},
"geo": {
"lat": 29.22145,
"lon": 119.84023
}
},
"ads": [
{
"type": 0,
"floor_price": 0,
"w": 640,
"h": 100,
"inventory_types": [
1,
2,
4,
5
]
}
]
}
banner图片广告返回示例¶
Note
如果请求参数 inventory_types:[] 中包含 1(物料类型为图片) ,则玉米广告可以返回图片广告，返回参数中 inventory_type 也会标为 1 代表此广告为图片类型的广告
{
"ads": [
{
"id": "464",
"place_id": "",
"action": 2,
"image_url": "http://pgdt.gtimg.cn/gdt/0/DAACinJAJYAH0ABJBWoebKBuOgTF8e.jpg/0?ck=13afb5e35954c59df6d0027ac679eb91",
"w": 720,
"h": 1038,
"target_url": "http://c.gdt.qq.com/gdt_mclick.fcg?viewid=t6o7__bYZoWql51I7krTHXw7wX3HwUO9FjIJt6rPb8mySO4Cu!!XqJrUNtcEUqqnhweRJ4LLS2m49e8HowA62q!9A3lx4Doz_9tzhiFUUlCMXWdN2EKozjMRBb1KLFPtzKPDguyL1XXhtJIXEQlUJVWUlBGubb1_!csNQ1sjv6cL2Bv2x6hgcGzZKiqUH1N1juj87SFLvPyB2QAPdV57Lg&jtype=0&i=1&os=2",
"click_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=1dfd3ecd691b73d7&t=1&bid_id=0bts0K1CObXU1MkqKd28U76h45LrcY&ad_id=464&type=2&dsp_id=20&plmn=46000&ssp_id=449&app_id=1007877&app_bundle_id=cn.eclicks.drivingtest&price_enc=Xm7JWFA9pOhXsloDA1CMNw&cur=CNY&u=http%3A%2F%2Fc.gdt.qq.com%2Fgdt_mclick.fcg%3Fviewid%3Dt6o7__bYZoWql51I7krTHXw7wX3HwUO9FjIJt6rPb8mySO4Cu%21%21XqJrUNtcEUqqnhweRJ4LLS2m49e8HowA62q%219A3lx4Doz_9tzhiFUUlCMXWdN2EKozjMRBb1KLFPtzKPDguyL1XXhtJIXEQlUJVWUlBGubb1_%21csNQ1sjv6cL2Bv2x6hgcGzZKiqUH1N1juj87SFLvPyB2QAPdV57Lg%26jtype%3D0%26i%3D1%26os%3D2%3Fviewid%3Dt6o7__bYZoWql51I7krTHXw7wX3HwUO9FjIJt6rPb8mySO4Cu%21%21XqJrUNtcEUqqnhweRJ4LLS2m49e8HowA62q%219A3lx4Doz_9tzhiFUUlCMXWdN2EKozjMRBb1KLFPtzKPDguyL1XXhtJIXEQlUJVWUlBGubb1_%21csNQ1sjv6cL2Bv2x6hgcGzZKiqUH1N1juj87SFLvPyB2QAPdV57Lg%26acttype%3D1%26s%3D%257B%2522down_x%2522%253A0%252C%2522down_y%2522%253A0%257D&adid_sha1=&aid_sha1=67d3bc8ba4a697f34c7165779438873896665f3e&pid=zap937e286143f6d462185316171ff574a7b10077f6"
],
"imp_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=607f65d9268021d3&t=0&bid_id=0bts0K1CObXU1MkqKd28U76h45LrcY&ad_id=464&type=2&dsp_id=20&plmn=46000&ssp_id=449&app_id=1007877&app_bundle_id=cn.eclicks.drivingtest&price_enc=Xm7JWFA9pOhXsloDA1CMNw&cur=CNY&u=http%3A%2F%2Fv.gdt.qq.com%2Fgdt_stats.fcg%3Fcount%3D1%26viewid0%3Dt6o7__bYZoWql51I7krTHXw7wX3HwUO9FjIJt6rPb8mySO4Cu%21%21XqJrUNtcEUqqnhweRJ4LLS2m49e8HowA62q%219A3lx4Doz_9tzhiFUUlCMXWdN2EKozjMRBb1KLFPtzKPDguyL1XXhtJIXEQlUJVWUlBGubb1_%21csNQ1sjv6cL2Bv2x6hgcGzZKiqUH1N1juj87SFLvPyB2QAPdV57Lg&adid_sha1=&aid_sha1=67d3bc8ba4a697f34c7165779438873896665f3e&pid=zap937e286143f6d462185316171ff574a7b10077f6"
],
"refresh_interval": 90,
"inventory_type": 1,
"ssp_id": "9",
"ex_param": [
"",
"",
"",
"",
""
],
"price": 0
}
],
"msg": "",
"result": 0
}
app中banner广告展示示例¶
banner图文广告返回示例¶
Note
如果请求参数 inventory_types:[] 中包含 2(物料类型为图文) ,则玉米广告可以返回图片广告，返回参数中 inventory_type 也会标为 2 代表此广告为图文类型的广告，图文广告返回的title和desc字段会有对应的标题和描述。 支持图文广告可以提高APP的填充率哦。
{
"ads": [
{
"id": "12345",
"place_id": "",
"action": 2,
"image_url": "http://ppgz.zplay.cn/image/adx_img/64-64.png",
"w": 728,
"h": 90,
"app_bundle": "com.zplay.cn",
"target_url": "http://www.zplay.cn",
"click_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=ef04cd9d5fb26ac&t=1&bid_id=0bts0I1COlE84eWliQ0acOvq1BuEwD&ad_id=12345&type=0&dsp_id=129&plmn=46002&ssp_id=1&app_id=1006896&app_bundle_id=com.zplay.android.sdk.zplayad.demo1302&price_enc=vP_JWAZgp3pIO4IGGREl0g&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dclick%26id%3D123&adid_sha1=&aid_sha1=dd1f217060dc909168c1c8642525bb24765c2e09&test=1&pid=zapdd13a671432d4a653e372fa03b3c68971f788a12",
"http://test.adx.yumimobi.com/page_click.php"
],
"imp_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=116c574d39434e0d&t=0&bid_id=0bts0I1COlE84eWliQ0acOvq1BuEwD&ad_id=12345&type=0&dsp_id=129&plmn=46002&ssp_id=1&app_id=1006896&app_bundle_id=com.zplay.android.sdk.zplayad.demo1302&price_enc=vP_JWAZgp3pIO4IGGREl0g&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dimp%26id%3D123&adid_sha1=&aid_sha1=dd1f217060dc909168c1c8642525bb24765c2e09&test=1&pid=zapdd13a671432d4a653e372fa03b3c68971f788a12",
"http://test.adx.yumimobi.com/page_show.php"
],
"refresh_interval": 0,
"inventory_type": 2,
"title": "长腿爸爸",
"desc": "一个非常好玩的亲子游戏，快来体验吧",
"ssp_id": "10",
"price": 0
}
],
"msg": "",
"result": 0
}
Warning
图文广告不能像图片广告一样，直接把image_url图片展示出来，通常是将图片，标题，描述按照左图右文字（标题上，描述下或标题描述拼接在一块儿来展示）组合拼装，如下面示例；媒体也可以根据自己的APP选择拼接的样式。
测试返回广告示例¶
banner html返回示例¶
Note
如果请求参数 inventory_types:[] 中包含 4(物料类型为html) ,则表示媒体支持html广告展示，玉米广告可以返回html广告，返回参数中 inventory_type 也会标为 4 代表此广告为html类型的广告，html_snippet字段中即为需要展示的html代码段。 支持html广告也可以提高APP的填充率哦。
{
"ads": [
{
"id": "12345",
"place_id": "",
"action": 2,
"html_snippet": "<!DOCTYPE html><html><head><meta charset=\"utf-8\"/><meta name=\"viewport\" content=\"width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0, user-scalable=no,telephone=no\"/><meta name=\"format-detection\" content=\"telephone=no\"/><title></title><style>html,body{width:100%;height:100%;}*{padding:0;margin:0}img{display:block;position:absolute;top:0;left:0;width:100% !important;height:100% !important;}img[width=\"1\"]{width:1px;height:1px;display:none}img[width=\"1px\"]{width:1px;height:1px;display:none}img[width=\"0\"]{width:1px;height:1px;display:none}img[width=\"0px\"]{width:1px;height:1px;display:none}</style></head><body><div id=\"container\"><div class=\"veiw_con\"><a href=\"https://lnk0.com/NZ5E50?clickFlag=zplay\"><img id=\"img2\" class=\"com-img\" src=\"http://cdn.f2time.com/image/20161205/1e134d003ce34f9693a768abc2994928_tmp.jpg\"/></a></div></div></body></html>",
"image_url": "",
"w": 320,
"h": 50,
"app_bundle": "com.zplay.cn",
"target_url": "http://www.zplay.cn",
"click_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=42aff45315acb70d&t=1&bid_id=0bug6s1COrdw4rZwoY1AtZst4npvg3&ad_id=12345&type=0&dsp_id=129&plmn=46001&ssp_id=1&app_id=1007716&app_bundle_id=com.zplay.classicpopstar&price_enc=YlPKWATzcV8O4PyFuQc7Kw&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dclick%26id%3D123&adid_sha1=e9ace9d5e87035219a227db42b915909a91c989a&test=1&pid=zap64366690d9b306604610228a465db1aa97e42e89",
"http://test.adx.yumimobi.com/page_click.php"
],
"imp_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=699706254edd7d40&t=0&bid_id=0bug6s1COrdw4rZwoY1AtZst4npvg3&ad_id=12345&type=0&dsp_id=129&plmn=46001&ssp_id=1&app_id=1007716&app_bundle_id=com.zplay.classicpopstar&price_enc=YlPKWATzcV8O4PyFuQc7Kw&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dimp%26id%3D123&adid_sha1=e9ace9d5e87035219a227db42b915909a91c989a&test=1&pid=zap64366690d9b306604610228a465db1aa97e42e89",
"http://test.adx.yumimobi.com/page_show.php"
],
"refresh_interval": 0,
"inventory_type": 4,
"ssp_id": "10",
"price": 0
}
],
"msg": "",
"result": 0
}
Warning
媒体看到返回的 invenroy为4 直接将 html_snippet 中的代码段内容在APP中渲染出来即可。html广告中 image_url 字段是空的，可以忽略。
app中banner html返回示例¶
插屏请求示例¶
Note
同banner广告一样，插屏广告在请求的时候也需要通过 inventory_types 标明支持的物料类型
{
"ver": "1.1",
"ssp_token": "zplay提供的ssp_token",
"need_https": 0,
"app": {
"id": "zplay提供的app_id",
"name": "DrivingTest",
"app_key": "zplay提供的app_key",
"bundle": "cn.eclicks.drivingtest",
"ver": "",
"cat": []
},
"device": {
"model": "vivoX7",
"brand": "vivo",
"adt": 1,
"connection_type": "wifi",
"carrier": 0,
"orientation": 1,
"mac": "20:5d:47:0b:33:38",
"imei": "862505031462331",
"android_id": "840be0b0d00e6169",
"openudid": "e4791d89-dda9-36c0-b9df-edacc24b01c8",
"os_type": "android",
"os_version": "5.1.1",
"screen": {
"w": 1080,
"h": 1920,
"dpi": 480
},
"geo": {
"lat": 31.151308,
"lon": 108.36747
}
},
"ads": [
{
"type": 1,
"floor_price": 0,
"w": 720,
"h": 1038,
"inventory_types": [
1,
2,
4,
5
]
}
]
}
插屏图片广告返回示例¶
Note
如果媒体请求广告时，通过 inventory_types 指明支持支持图片广告，且返回的广告中 invenroy_type 为1,则媒体将 img_url 图片展示出来即可
{
"ads": [
{
"id": "12345",
"place_id": "",
"action": 2,
"image_url": "http://ppgz.zplay.cn/image/adx_img/640x960.jpg",
"w": 640,
"h": 960,
"app_bundle": "com.zplay.cn",
"target_url": "http://www.zplay.cn",
"click_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=73cc52f1feb1da5e&t=1&bid_id=0bts0K1COs1I0y4BSv1bbpHN3VyPRY&ad_id=12345&type=1&dsp_id=129&plmn=46001&ssp_id=1&app_id=1007716&app_bundle_id=com.zplay.classicpopstar&price_enc=il_KWNyfsheu7FYW3m3eLw&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dclick%26id%3D123&adid_sha1=e9ace9d5e87035219a227db42b915909a91c989a&test=1&pid=zap417d768fb04d5db77bfc65af2a8ce736bc8122ae",
"http://test.adx.yumimobi.com/page_click.php"
],
"imp_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=6af77c9ef310cdb1&t=0&bid_id=0bts0K1COs1I0y4BSv1bbpHN3VyPRY&ad_id=12345&type=1&dsp_id=129&plmn=46001&ssp_id=1&app_id=1007716&app_bundle_id=com.zplay.classicpopstar&price_enc=il_KWNyfsheu7FYW3m3eLw&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dimp%26id%3D123&adid_sha1=e9ace9d5e87035219a227db42b915909a91c989a&test=1&pid=zap417d768fb04d5db77bfc65af2a8ce736bc8122ae",
"http://test.adx.yumimobi.com/page_show.php"
],
"refresh_interval": 0,
"inventory_type": 1,
"ssp_id": "10",
"price": 0
}
],
"msg": "",
"result": 0
}

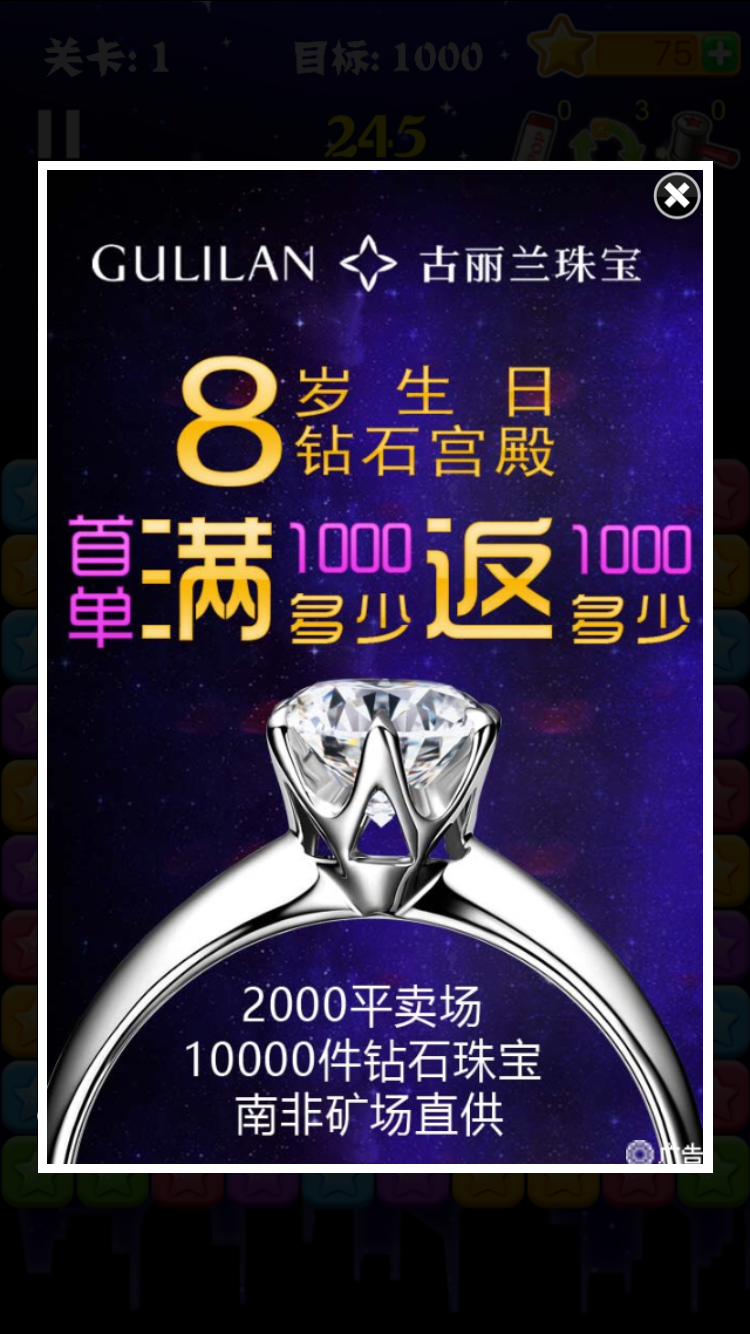

APP中插屏图片广告返回示例¶
插屏图文广告返回示例¶
Note
如果媒体请求广告时，通过 inventory_types 指明支持支持图文广告，且返回的广告中 invenroy_type 为2,则改广告位图文广告。（图文广告通常图片为小图ICON）
{
"ads": [
{
"id": "12345",
"place_id": "",
"action": 2,
"image_url": "http://ppgz.zplay.cn/image/adx_img/64-64.png",
"w": 640,
"h": 960,
"app_bundle": "com.zplay.cn",
"target_url": "http://www.zplay.cn",
"click_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=1caadc2eca3cdf3a&t=1&bid_id=0bulZf1COwg645eaAm0q12Wl0KQyQc&ad_id=12345&type=1&dsp_id=129&plmn=46001&ssp_id=1&app_id=1007716&app_bundle_id=com.zplay.classicpopstar&price_enc=Fp_KWHCqskhzQOB8UEukkQ&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dclick%26id%3D123&adid_sha1=e9ace9d5e87035219a227db42b915909a91c989a&test=1&pid=zap417d768fb04d5db77bfc65af2a8ce736bc8122ae",
"http://test.adx.yumimobi.com/page_click.php"
],
"imp_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=7d7b2ba2193af5f1&t=0&bid_id=0bulZf1COwg645eaAm0q12Wl0KQyQc&ad_id=12345&type=1&dsp_id=129&plmn=46001&ssp_id=1&app_id=1007716&app_bundle_id=com.zplay.classicpopstar&price_enc=Fp_KWHCqskhzQOB8UEukkQ&cur=CNY&u=http%3A%2F%2Ftest.adx.yumimobi.com%2Fmock.php%3Ftype%3Dimp%26id%3D123&adid_sha1=e9ace9d5e87035219a227db42b915909a91c989a&test=1&pid=zap417d768fb04d5db77bfc65af2a8ce736bc8122ae",
"http://test.adx.yumimobi.com/page_show.php"
],
"refresh_interval": 0,
"inventory_type": 2,
"title": "长腿爸爸",
"desc": "一个非常好玩的亲子游戏，快来体验吧",
"ssp_id": "10",
"price": 0
}
],
"msg": "",
"result": 0
}
Warning
同banner的图文广告一样,不能只将 img_url 图片展示出来,需要将 img_url title desc 字段按照一定的格式排列组织好，展示出来即可，即可参照下图的示例来排列展示，也可以由媒体自己来组织展现方式。

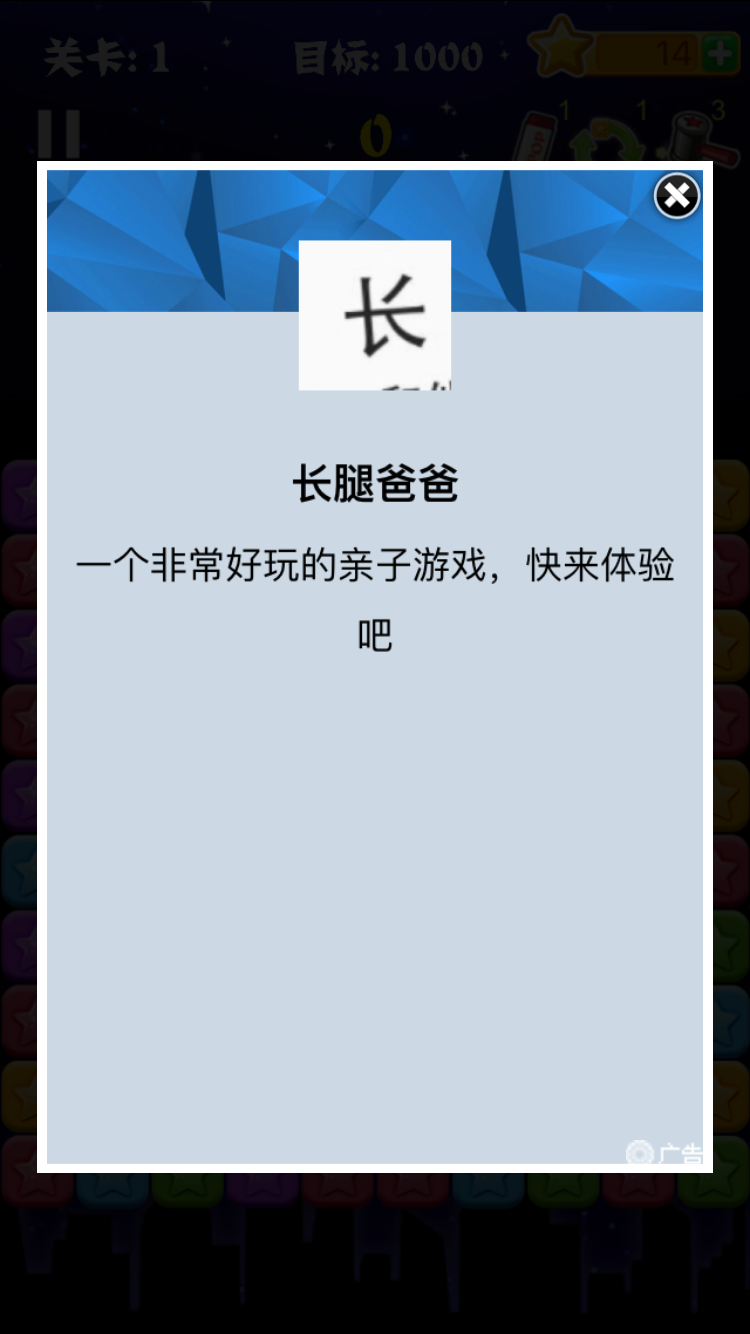

app中插屏图文广告返回示例¶
插屏html广告返回示例¶
Note
如果媒体请求广告时，通过 inventory_types 指明支持支持html广告,即包含4，且返回的广告中 invenroy_type 为4,则该广告为插屏的html广告。展示方式通banner的html广告，请参考banner html广告展示
开屏请求示例¶
Note
同banner,开屏广告一样，开屏广告在请求的时候也需要通过 inventory_types 标明支持的物料类型,通常也包含（图片，图文，html)三种类型的广告，
与插屏广告不同的是，请求参数中ad_type为2，是在应用刚开始启动的时候展示,
具体展示示例可参考插屏的三种广告返回和展示示例.
{
"ver": "1.1",
"ssp_token": "zplay提供的ssp_token",
"need_https": 0,
"app": {
"id": "zplay提供的app_id",
"name": "DrivingTest",
"app_key": "zplay提供的app_key",
"bundle": "cn.eclicks.drivingtest",
"ver": "",
"cat": []
},
"device": {
"model": "vivoX7",
"brand": "vivo",
"adt": 1,
"connection_type": "wifi",
"carrier": 0,
"orientation": 1,
"mac": "20:5d:47:0b:33:38",
"imei": "862505031462331",
"android_id": "840be0b0d00e6169",
"openudid": "e4791d89-dda9-36c0-b9df-edacc24b01c8",
"os_type": "android",
"os_version": "5.1.1",
"screen": {
"w": 1080,
"h": 1920,
"dpi": 480
},
"geo": {
"lat": 31.151308,
"lon": 108.36747
}
},
"ads": [
{
"type": 2,
"floor_price": 0,
"w": 720,
"h": 1038,
"inventory_types": [
1,
2,
4,
5
]
}
]
}
开屏图片广告返回示例¶
Note
参考banner图片广告，展示返回广告中的 `img_url 图片即可
开屏图文广告返回示例¶
Note
参考插屏的图文广告返回示例，需要返回内容中的 img_url title desc 组合瓶装展示
开屏html广告返回示例¶
Note
参考banner html广告返回示例即可，将返回的 html_snippet 中的html代码在app中展示出来即可
原生广告请求示例¶
Note
ad_type 为 3 ， invenroty_types 为 [6] 请求的元素为媒体根据自己展示需要定义的元素快
{
"ver": "1.1",
"ssp_token": "zplay提供的ssp_token",
"app": {
"id": "zplay提供的app_id",
"name": "app name",
"app_key": "zplay提供的app_key",
"bundle": "bundle.com"
},
"device": {
"model": "iPhone 5 (A1429/A1442)",
"make": "Apple",
"brand": "Apple",
"ip": "223.74.73.17",
"connection_type": "wifi",
"carrier": 0,
"os_version": "10.2.1",
"os_type": "ios",
"mac": null,
"openudid": "983ADE10-20E6-441E-9078-2FA932787E67",
"ios_adid": "983ADE10-20E6-441E-9078-2FA932787E67"
},
"ads": [
{
"inventory_types": [
6
],
"type": 3,
"floor_price": 0,
"native": {
"layout": 3,
"assets": [
{
"id": 0,
"title": {
"len": 30
}
},
{
"id": 2,
"img": {
"type": 3,
"w": 640,
"h": 320
}
}
]
},
"w": 640,
"h": 320
}
]
}
原生广告返回示例¶
{
"Ad_Responses": [
{
"id": "611",
"place_id": "",
"action": 2,
"image_url": "",
"w": 640,
"h": 320,
"target_url": "",
"click_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=28dcac6e3119e34c&t=1&bid_id=0bts0K1COxc026JViX3879I314lTQu&ad_id=611&type=3&dsp_id=20&plmn=46000&ssp_id=445&app_id=1007816&app_bundle_id=com.idol.ios&price_enc=HK3KWH-GwiN5V-nX4DdXDQ&cur=CNY&adid_sha1=5a126d40d994ef41d3e747339fe64bb0e0091b37&pid=zap60bb78bc056d737fd90773832834930d264cc5fd",
"http://c.gdt.qq.com/gdt_mclick.fcg?viewid=NtupfjoJRlZpXS_vNhoQmyx9s9fY8vM3mHxNC26zSmAHJ_IlOArCMMTcfB_9T07!DMyJmd5Qu43LRxKoflPKo4F6r3Bzww5DQwPhwcHhVhnRQnVe19Ik2rN9EES5JCqJL1FtWzL3BB6hXW3!92M!965AKLz3UEZbCHUy08zSwJXSbf!FQ7Oc60FaHmLg!N4pwI9AqxQCYMTHeICIhhXMcw&jtype=0&i=1&os=1?viewid=NtupfjoJRlZpXS_vNhoQmyx9s9fY8vM3mHxNC26zSmAHJ_IlOArCMMTcfB_9T07!DMyJmd5Qu43LRxKoflPKo4F6r3Bzww5DQwPhwcHhVhnRQnVe19Ik2rN9EES5JCqJL1FtWzL3BB6hXW3!92M!965AKLz3UEZbCHUy08zSwJXSbf!FQ7Oc60FaHmLg!N4pwI9AqxQCYMTHeICIhhXMcw&acttype=0&s=%7B%22down_x%22%3A0%2C%22down_y%22%3A0%7D"
],
"imp_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=762b36d6447913fd&t=0&bid_id=0bts0K1COxc026JViX3879I314lTQu&ad_id=611&type=3&dsp_id=20&plmn=46000&ssp_id=445&app_id=1007816&app_bundle_id=com.idol.ios&price_enc=HK3KWH-GwiN5V-nX4DdXDQ&cur=CNY&adid_sha1=5a126d40d994ef41d3e747339fe64bb0e0091b37&pid=zap60bb78bc056d737fd90773832834930d264cc5fd",
"http://v.gdt.qq.com/gdt_stats.fcg?count=1&viewid0=NtupfjoJRlZpXS_vNhoQmyx9s9fY8vM3mHxNC26zSmAHJ_IlOArCMMTcfB_9T07!DMyJmd5Qu43LRxKoflPKo4F6r3Bzww5DQwPhwcHhVhnRQnVe19Ik2rN9EES5JCqJL1FtWzL3BB6hXW3!92M!965AKLz3UEZbCHUy08zSwJXSbf!FQ7Oc60FaHmLg!N4pwI9AqxQCYMTHeICIhhXMcw"
],
"refresh_interval": 0,
"inventory_type": 6,
"ssp_id": "9",
"ex_param": [
"",
"",
"",
"",
""
],
"native": {
"assets": [
{
"id": 0,
"title": {
"text": "饿了么"
}
},
{
"id": 2,
"img": {
"url": "http://pgdt.gtimg.cn/gdt/0/DAALNssAUAALQABaBYqlw-BwDr80Wr.jpg/0?ck=f267de6cc4dbe0c2ba357d3233566692",
"w": 640,
"h": 320
}
}
],
"link": {
"url": "http://c.gdt.qq.com/gdt_mclick.fcg?viewid=NtupfjoJRlZpXS_vNhoQmyx9s9fY8vM3mHxNC26zSmAHJ_IlOArCMMTcfB_9T07!DMyJmd5Qu43LRxKoflPKo4F6r3Bzww5DQwPhwcHhVhnRQnVe19Ik2rN9EES5JCqJL1FtWzL3BB6hXW3!92M!965AKLz3UEZbCHUy08zSwJXSbf!FQ7Oc60FaHmLg!N4pwI9AqxQCYMTHeICIhhXMcw&jtype=0&i=1&os=1",
"type": 2
}
},
"zplay": {
"app_id": "1105857971",
"position_sid": "5000214883692309"
},
"price": 0
}
],
"msg": "",
"result": 0
}
视频广告请求示例¶
Note
视频请求的ad_type为4，inventory_types 为 [3]
{
"ads": [
{
"floor_price": 0,
"h": 960,
"inventory_types": [
3
],
"place_id": "FPA52248",
"pos": 0,
"type": 4,
"w": 640
}
],
"ad": {},
"app": {
"app_key": "zplay提供的app_key",
"bundle": "",
"id": "zplay提供的app_id",
"name": "app name",
"ver": "5.0.0"
},
"device": {
"adt": 1,
"android_id": "bdd66b6d38c69335",
"carrier": 0,
"connection_type": "wifi",
"geo": {
"accu": 0,
"lat": 0,
"lon": 0
},
"imei": "861619032588944",
"ios_adid": "",
"local": "",
"mac": "26:28:46:09:1d:4f",
"make": "samsung",
"model": "SM-T810",
"orientation": 1,
"os_type": "android",
"os_version": "6.0",
"plmn": "",
"screen": {
"dpi": 240,
"h": 1536,
"w": 1152
}
},
"is_tail": 0,
"is_test": 0,
"sdk_ver": "androidmedia1.2.1.2",
"ssp_token": "10000",
"user": {
"age": 0,
"gender": 0
},
"ver": "1.1"
}
视频广告返回示例¶
{
"Ad_Responses": [
{
"id": "19046454",
"place_id": "",
"action": 6,
"image_url": "http://oimageb1.ydstatic.com/image?id=-3419818951519079008&product=adpublish",
"w": 640,
"h": 960,
"target_url": "http://dl.hdslb.com/mobile/latest/iBiliPlayer-youdao010.apk",
"click_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=6dc86f24a6f5c527&t=1&bid_id=0bts0K1COxbZ25BVLJ4aKOsy3lZJ9U&ad_id=19046454&type=4&dsp_id=602&plmn=46000&ssp_id=1&app_id=1000481&app_bundle_id=&price_enc=G63KWEiAWBhhBc34J0nXRw&cur=CNY&u=http%3A%2F%2Fp.clkservice.youdao.com%2Fclk%2Frequest.s%3Fk%3D4nx6iXFBcrUkfq9Pk%252BQJmS9cBWcnVn%252FvkeOOR6zbRfHXxo%252BoRxcJpjjAgKuViCqv52rawaCcQI2R6UiK1fhynWLAHXSMp8aBaL0cKcYl8mtcrJiEXwf%252FhYZwCCBIYpYkWLSHlAnWvRC13XK2RLk2jd4D4lkCrc2ittfTajZlNcoefJW0XPAIqdeMIrNGkCZe%252FIFW0I4LteiV%252FrsRj%252F2xlLTp7UV9cZRJUk2Sey94ryegaXlA2SmQ3dJfV6xO2oCdMS8f%252B01OZiTuuiQtlRc%252BWkrC%252B5WXQRtCToR922rjacEjo3fGWc4cm6wN1jOsjZSEH%252F0qWLM832XuHVN3JUQ9DTIdG%252Bczoz1jkVv%252BJLo0%252FZwEOrMBmh5izfkJarUODPOoSGB0t8xtHvnNANy3ZHFPxJCTW0wUjwoO7K%252B9UkSbSq%252FkjTG%252BKdoF6%252BhjZrJzw2TteqAopSl%252FYsVWeCn9yHMoUR8j1x3%252F9Hr3%252BIHmehpO3ELBqJMgONppinYjWbikMXTzWqtaMUWFLz9almr9ZUdRE97S5kFykRuSF4oJ2i6ksee7MphQ06%252BNvts2J95dRFtV3YUlk9fgA%252BpfBEtQqOc2X8sfmQxG3vA7UWSzhtHd8BIh%252FdSdWeVZvjrWauuguVd4JOR5t8aXQKklWTtBewgdWvBWbyhZFXFWzCkoig9r3VLN8ayV3syYFo%252FG5P6LpNmQ%252FCu1PDzVlTvQ2FsbzgKBELr5rXlh5BMbIp282bQgB6nphmiWxo0B0FCOyQybgIsX6mleh6fw0t8WAp34OCu1vpCvw5E%252FS15%252BHM8wThy7PuzXxo%252BoRxcJpjjAgKuViCqv18aPqEcXCaY4wICrlYgqrx7cJrWwEnlELPOipPDadCLw6dP9Tw26XG5BNsUzi2UI%26isrd%3D0%26youdao_bid%3D0bts0K1COxbZ25BVLJ4aKOsy3lZJ9U%26youdao_deviceId%3Db064bbe4e5749412f7770bc1c0d8663999c8bd1f&adid_sha1=&aid_sha1=b064bbe4e5749412f7770bc1c0d8663999c8bd1f&pid=FPA52248"
],
"imp_trackers": [
"http://stat.adx.yumimobi.com/api/s?r=7f95f85bc960d054&t=0&bid_id=0bts0K1COxbZ25BVLJ4aKOsy3lZJ9U&ad_id=19046454&type=4&dsp_id=602&plmn=46000&ssp_id=1&app_id=1000481&app_bundle_id=&price_enc=G63KWEiAWBhhBc34J0nXRw&cur=CNY&u=http%3A%2F%2Fdsp-impr2.youdao.com%2Fz.gif%3Fyd_ewp%3DG63KWEiAWBhhBc34J0nXRw%26yd_ext%3DEnQKATESIDQxY2NjNmJmMjExMDhjZGRiZjZmYjJjNmU5ZmIzOTZiIksItsCKCRDM-q8CGPTjKSDU1BEo8k4wDjgOZQCQXUVwAHgAgAEAmAEBogELVHJhZGl0aW9uYWy6ARJ7Ik9SREVSRURfSUQiOiIxIn0wAyIeMGJ0czBLMUNPeGJaMjVCVkxKNGFLT3N5M2xaSjlVKHQwADoAQgBSDjExOS4xMzEuMjIyLjgxag0xNDg5Njc3NTk1MjE5eACCAQCIAdkbkAHT5NC9rSuoAQGwAQG4AQHCAQQyNDI00AEB2gEoYjA2NGJiZTRlNTc0OTQxMmY3NzcwYmMxYzBkODY2Mzk5OWM4YmQxZuIBGRoAMhBiZGQ2NmI2ZDM4YzY5MzM1OgM2LjD6AQU1LjAuMA&adid_sha1=&aid_sha1=b064bbe4e5749412f7770bc1c0d8663999c8bd1f&pid=FPA52248"
],
"refresh_interval": 0,
"inventory_type": 3,
"ssp_id": "10",
"video": {
"url": "http://download.ydstatic.com/sdk/mp4/my%20wife%20is%20student%20union%20president.mp4",
"play_duration": 15,
"player_start_trackers": [
"http://dsp-impr2.youdao.com/impplay.s?ext=Ch4wYnRzMEsxQ094YloyNUJWTEo0YUtPc3kzbFpKOVUQ1NQRGPTjKSDM%2Bq8CKLbAigkwdDoOMTE5LjEzMS4yMjIuODFA0%2BTQva0rSAFSBDI0MjRaIDQxY2NjNmJmMjExMDhjZGRiZjZmYjJjNmU5ZmIzOTZiYihiMDY0YmJlNGU1NzQ5NDEyZjc3NzBiYzFjMGQ4NjYzOTk5YzhiZDFmeACCARBiZGQ2NmI2ZDM4YzY5MzM1igEAkAELmAGNAaIBBFdJRknCASQ0ZTYyNzIxYi03ZWM1LTRhMTYtOWNlYi1kMDVhNzkyYjUyNWTSAQU1LjAuMNoBAzYuMA%3D%3D&event_type=205&play_percent=0.0"
],
"player_end_trackers": [
"http://dsp-impr2.youdao.com/impplay.s?ext=Ch4wYnRzMEsxQ094YloyNUJWTEo0YUtPc3kzbFpKOVUQ1NQRGPTjKSDM%2Bq8CKLbAigkwdDoOMTE5LjEzMS4yMjIuODFA0%2BTQva0rSAFSBDI0MjRaIDQxY2NjNmJmMjExMDhjZGRiZjZmYjJjNmU5ZmIzOTZiYihiMDY0YmJlNGU1NzQ5NDEyZjc3NzBiYzFjMGQ4NjYzOTk5YzhiZDFmeACCARBiZGQ2NmI2ZDM4YzY5MzM1igEAkAELmAGNAaIBBFdJRknCASQ0ZTYyNzIxYi03ZWM1LTRhMTYtOWNlYi1kMDVhNzkyYjUyNWTSAQU1LjAuMNoBAzYuMA%3D%3D&event_type=205&play_percent=1.0"
]
},
"price": 0
}
],
"msg": "",
"result": 0
}
